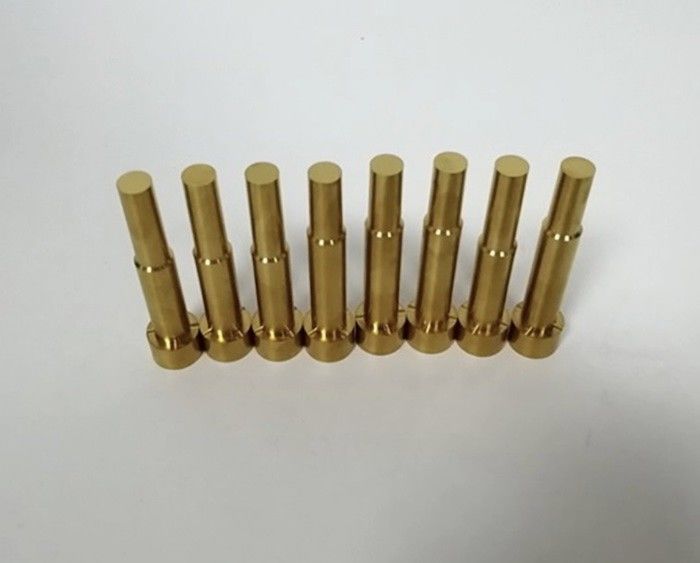

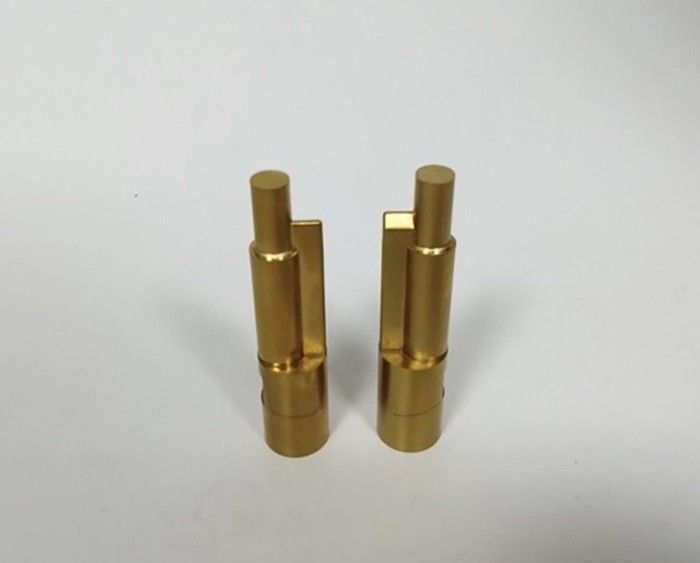

Hardness Brass Core Insert Plastic Mold Parts For Bottle Cap

^{Mold inserts are the terms relative to the integrated core – when the mold core is made of a single piece of steel, it is called an integrated core, while an insert is a part that’s inserted into the mold core made primarily of the steel material. As a matter of fact, the biggest weakness of an insert is that it weakens the rigidity of the mold as a whole. However, the application of different insert materials is able to independently enhance the rigidity of the weak parts.}

^{Let’s see what the circumstances for mold inserts applications are:}

^{1. Material Saving. The dimensioning of a mold core is defined by its highest point. If there is only one single point rising up regularly, this part can be inserted, so as to make the core shorter during dimensioning.}

^{2. Easy Processing for mold making. During processing, EDM is the slowest equipment with the poorest precision. As a result, an insert is selected to avoid EDM processing.}

^{3. Facilitate Ventilation. Inserts are usually needed for such circumstances as imperfect drainage during EDM processing and poor ventilation during molding, especially true for some deep ribs.}

^{4. Guarantee Precision. The grinding machine processes the highest level of processing precision. Sometimes, to guarantee precision, the application of inserts is subject to grinding machine processing requirements.}

^{5. Change Requirements. Sometimes, a customer may request to change the label of the same product, so interchangeable inserts are necessary under such circumstances.}

^{6. Convenient Polishing. It is rather inconvenient to polish the mold sometimes, especially for some deep parts. As a result, an insert is needed.}

^{7. Convenient Mold Modification. Some parts wear easily or have high precision requirements. Out of consideration for mold modification, an insert will be applied.}

^{8. Heat Radiation (cooling)Considerations. This mainly refers to beryllium copper inserts.}

^{With regard to processing efficiency, some large size molds are divided into several smaller inserts for separate processing to save time. Generally speaking, insects fall into 2 categories, i.e. through-hole insert and blind-end insert. Some small size inserts may adopt the Y-CUT approach to be fixed by the head, while the large size inserts, like those larger than 60*60, may adopt the form of the blind-end insert to be fixed by screws. Though the processing is relatively difficult, mold rigidity is guaranteed.}

Product Information:

^{Further Information:}

Core Value and Company Culture:

^{Hua Bao is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.}
