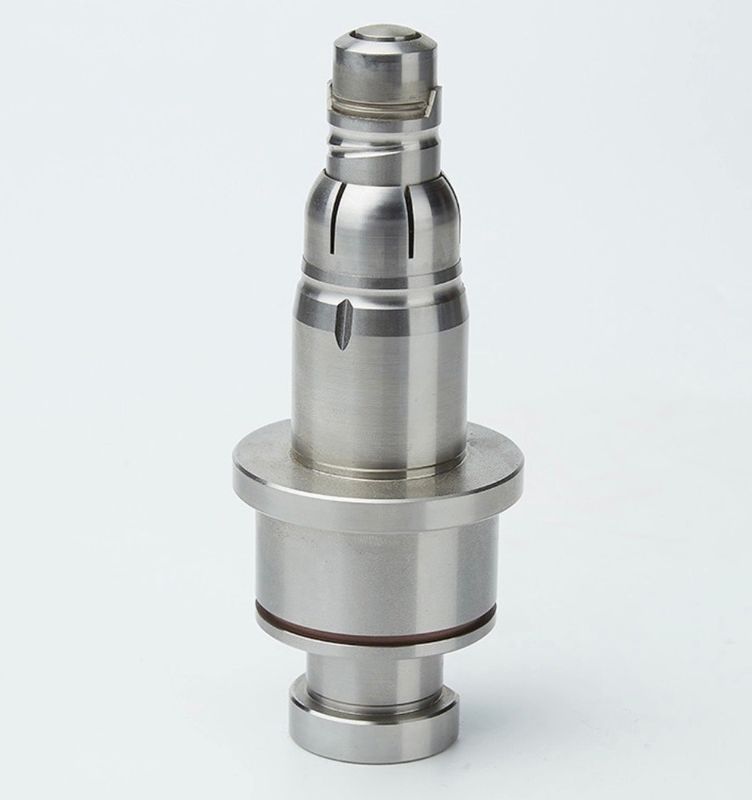

This Lathe machined part is used in plastic mold industry. The finish of the parts is required RA0.6. The closest tolerance of pouring nozzle is required 0.005mm. In order to improve the durability and finish, the parts are made of Stavax, and the hardness required HRC48-52.
During processing, the deformation of parts should be controlled. The rod will deform during heat treatment, so enough allowance should be left for roughing. There is a transition in the middle of the main rod, pay great attention to the transition Angle processing.
Our company is very good at rod products processing, we have advanced CNC lathe and internal and external grinding machines, at the same time has a group of professional technical personnel to ensure good quality for our products. We can process according to drawings or samples, we welcome your inquiry.
Product Information:
| Manufacturer |
Hua Bao |
| Product Name |
Mold Core |
| Industry Standards |
DIN, JIS, AISI, GB |
| Closest Tolerance |
±0.005mm |
| Polishness |
RA0.6 |
| Axiality |
±0.005mm |
| Verticality |
±0.005mm |
| Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
| Material |
Stavax ESR |
| Coating |
Chrome Plated |
| Quality Control |
Hardness Tester, Caliper, Altimeter, CMM, Projector, Mircrometer |
| Processing Machines |
CNC Lathe, External Cylindrical Grinder |
| Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples |
| Order Process |
Customer inquiries (provide 2D or 3D drawing)→ Hua Bao provides quotes and lead time→ Orders released by customer→ 50% advanced
payment→ Arrange production→QC pass→ Packing and shipping after receiving balance payment.
|
In recent years, we have introduced many high-precision processing machines and inspection instruments. Such as:
Processing Machines: Machining Centers, NC Lathes, Wire-cutting Machines and Mirror Spark Machines, Optical Grinding Machines and NC Grinders.
Inspection Instruments: Coordinate Measuring Machines, Quadratic Elements, Projectors and Altimeters, Rockwell Hardness Tester.
Our devices are equipped according to the highest international standards. Complete processing and inspection equipment plus the best quality-mind are our guarantee for the excellent quality and service for customers.
Core Value And Company Culture:
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
Why Choose Us?
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
FAQ:
Q1: What is mold core and cavity?
A: The core is the male part which forms the internal shape of molding. The cavity is the female part which forms external shape of molding.
Q2: What is core in injection molding process?
A: Cavity and core are used in the injection molding process, where the concave part of the mold is the cavity and the convex part is the core. The cavity and core are used in pairs, with the cavity also referred to as the female mold and the core as the male mold.
Q3: What is core in plastic injection molding?
A: Core is the side of the tool where the plastic part is injected from; also known as the bottom half of the tool. The upper half of the mold is called CORE.
Q4: Why core is used in mold cavity?
A: The core and cavity are the two halves of the mold where the hot molten plastic material is injected into the core and cavity and the gap between the core and cavity is filled with the hot molten material during the injection molding process and then hardened into the final shape.
