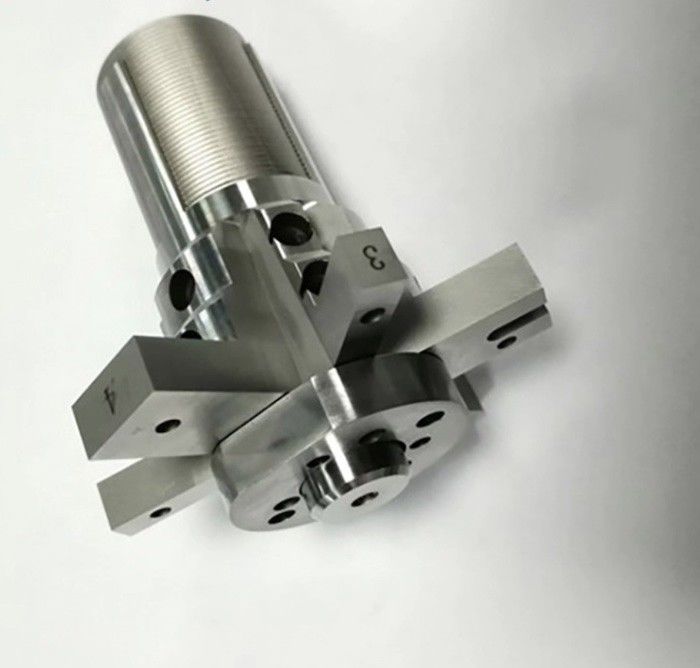

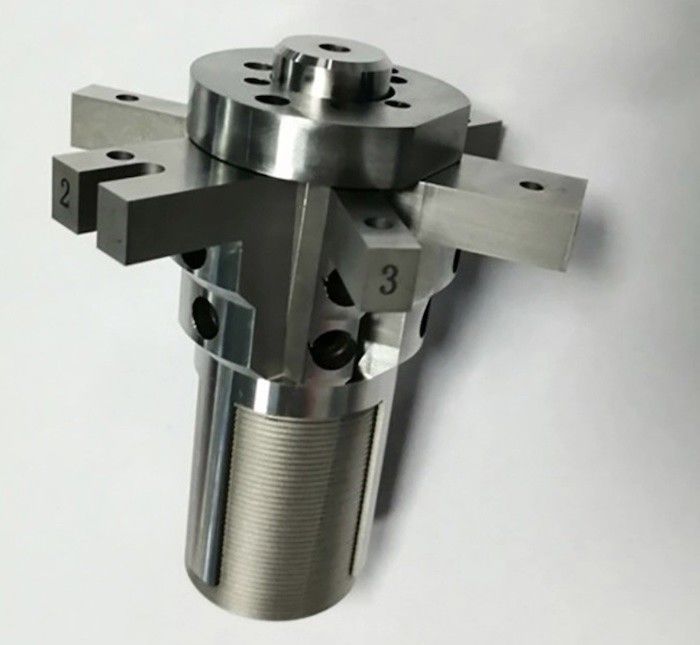

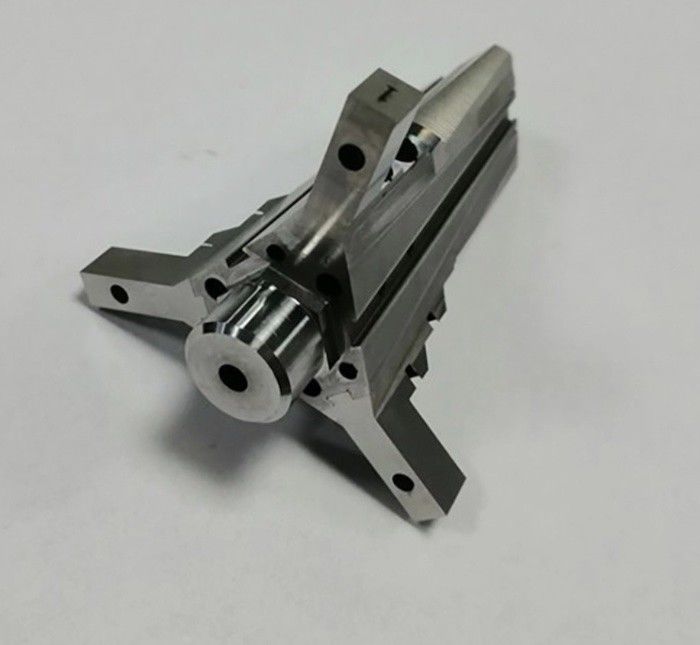

1.2108 Die Steel Precision Mold Parts Components For Plastic Mould OEM

^{The Mold Core and the cavity that constitute the part of the molded article that becomes an undercut are divided, and then designed and fabricated. The Removable Mold Core Inserts that are prepared by dividing the mold are taken out from the mold along with the molded product at the time of ejecting the molded article. The Removable Mold Core Insert is removed from the molded article by a manual operation. The Removable Mold Insert is installed in the mold manually at the time of the next molding. In other words, with a Removable Mold Core Insert structure, it is not possible to carry out continuous injection molding, and the method is that of forming the undercut shape semi-automatically using manual operations additionally.}

^{There are also some cases in which the Removable Mold Core Insert is pushed out from the mold by an ejector pin. In order to position the Removable Mold Core Insert, a key structure or a knock pin structure is used in some cases. There are cases in which the molding is done after pre-heating the Removable Mold Core Insert. There is also the method of molding which makes the semi-automatic molding more efficient by preparing two Removable Mold Core Inserts, and inserting them alternately into the mold. In order to ensure that the direction of inserting the removable insert is not mistaken, there is also the technique of using a direction determining structure.}

^{The key point is to design the escape and the clearance so as to make it easy to install and remove the removable inserts. There is also the management aspect of provisionally preparing the trial mold with a removable insert structure, thereby obtaining time for developing a mold structure such as the slide core structure that can permit continuous molding}

Product Information:

^{1. Provide the detailed production schedule for each order.}

^{2. Offering production status with video and photos for each component.}

^{3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.}

^{4. Over 99% orders can meet the lead time requirement.}

^{5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.}

^{6. Using the first-rank raw materials which also can be traced.}

^{7. Provide the most competitive price with the high quality and service standard.}

^{8. The most reasonable packing scheme for all products.}

Packaging:

<sup>1. Hua Bao packaging is based on the highest industry standard;
2. Each part is packed independently.</sup>

Delivery (Shipping):

<sup>1. Using DHL, UPS, Fedex, TNT, EMS and SF experss to deliver products to your destination.
2. Ship products to your nearest port by sea.</sup>
